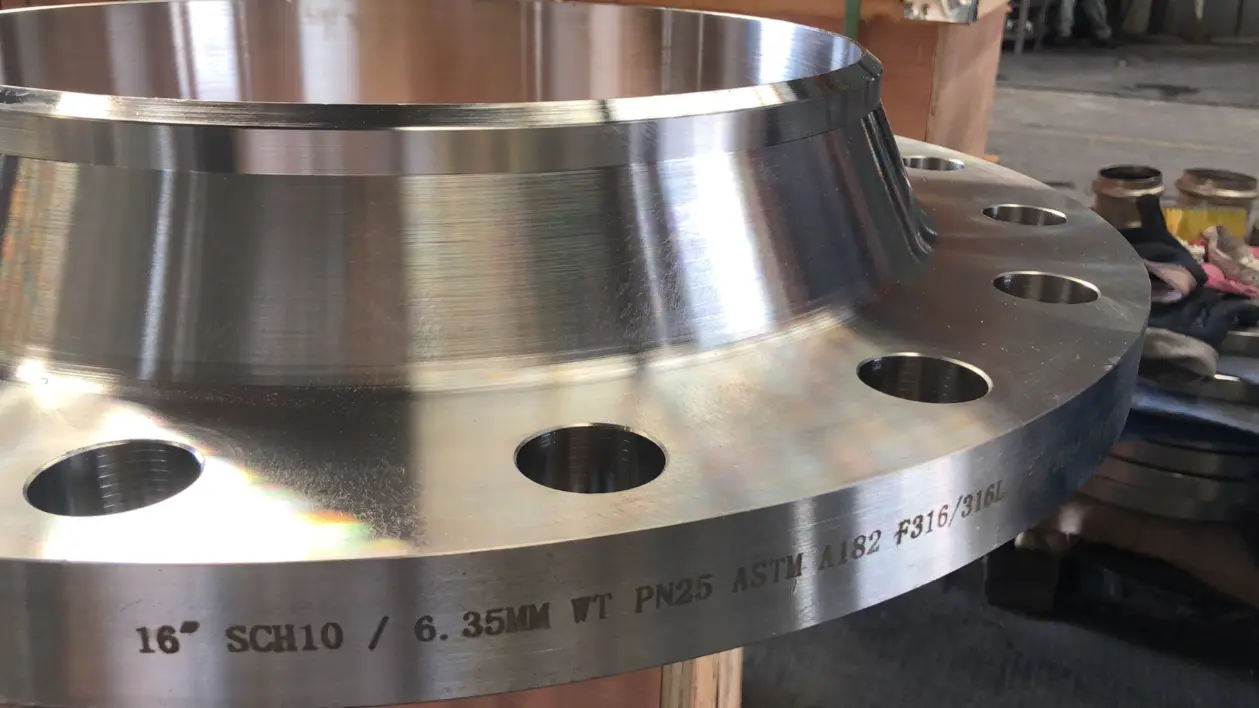

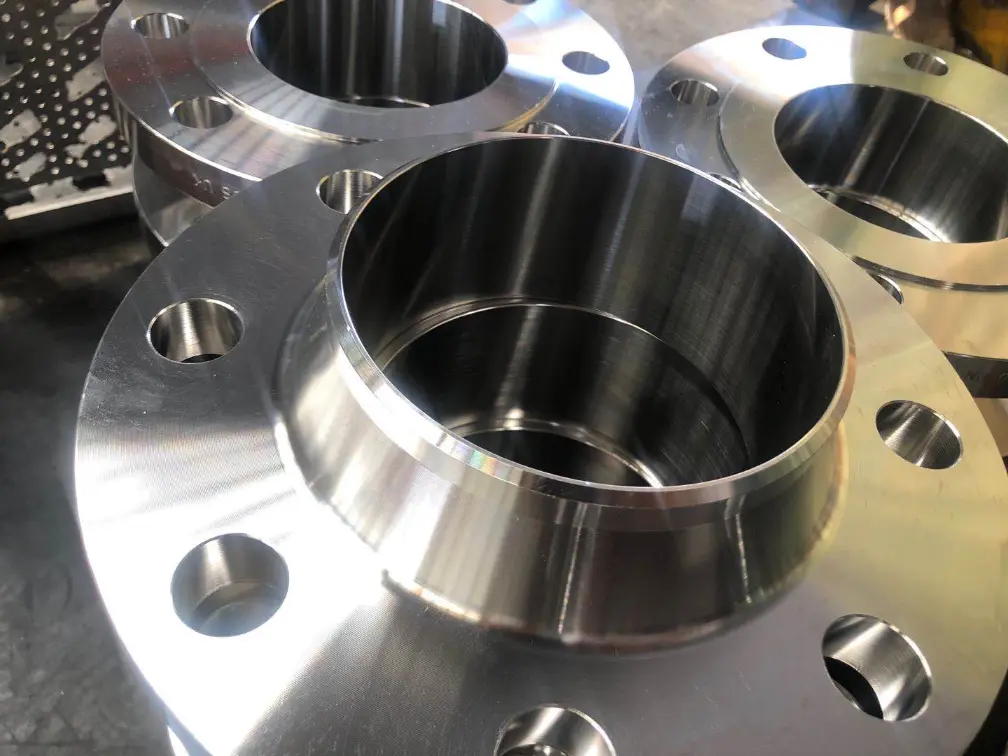

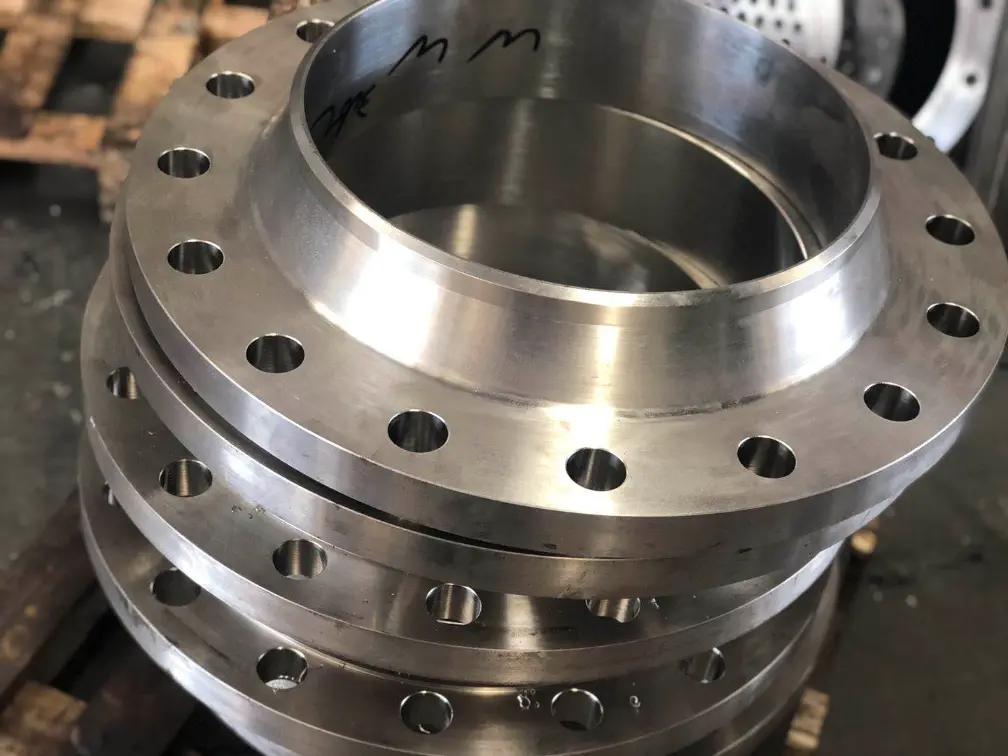

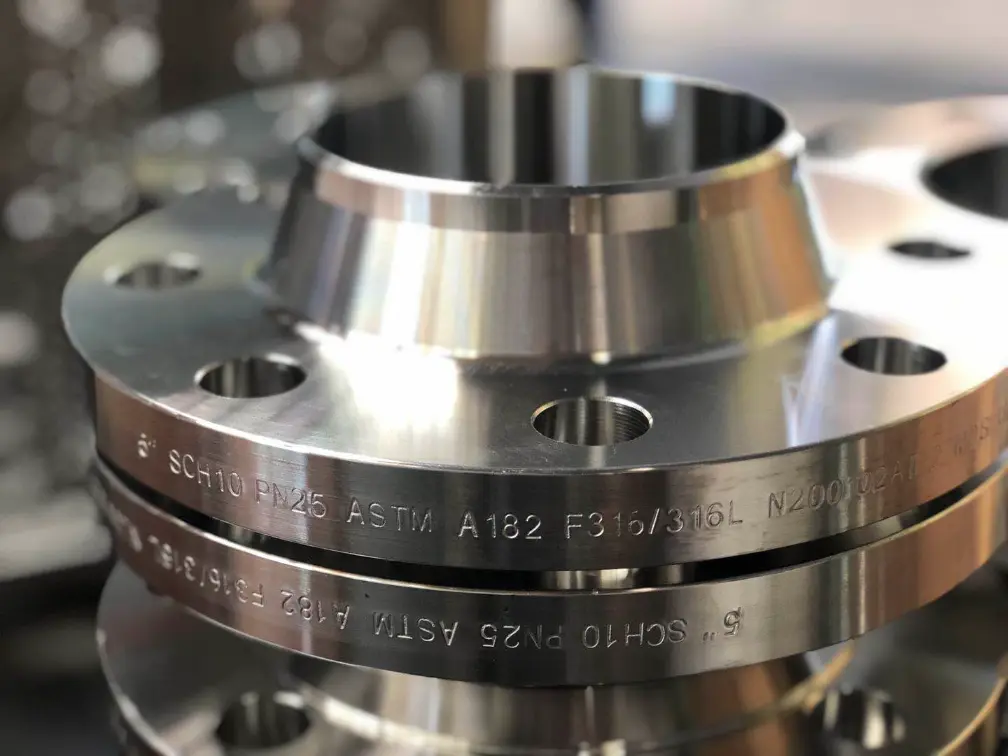

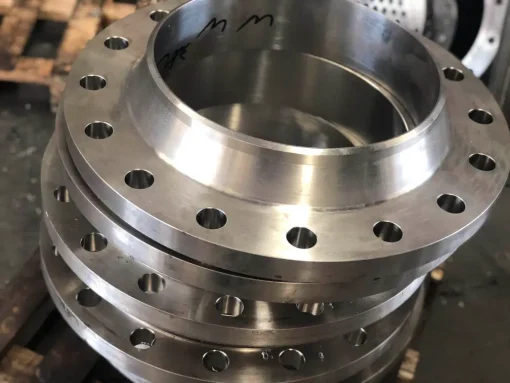

Overview of Stainless Steel Weld Neck Flange
A Stainless Steel Weld Neck Flange is a type of pipe flange designed for high-pressure and high-temperature applications, featuring a long tapered hub that is welded to the pipe. This hub provides reinforcement and helps to distribute stress evenly, making the weld neck flange one of the strongest and most durable flange types available. The flange itself has a circular shape with bolt holes around its perimeter, allowing it to be securely bolted to a matching flange with a gasket in between to ensure a tight, leak-proof seal.

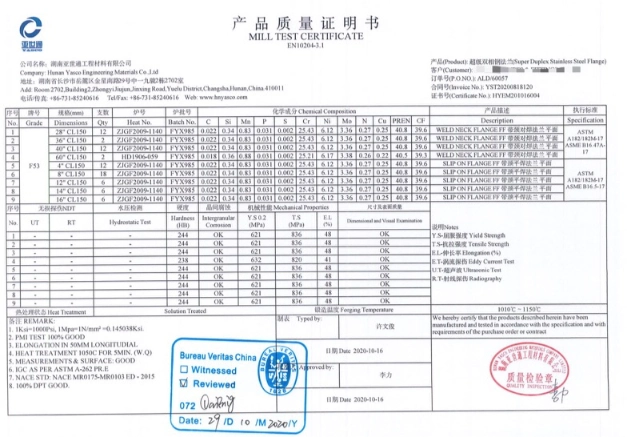

Stainless Steel Weld Neck Flange Mill Test Certificate
Stainless steel flange MTC is the official documents to confirm the quality,chemical composition,mechanical properties of stainless steel materials used to produce the flanges,we can guarantee that our products meets the standard and customers’ requirement.

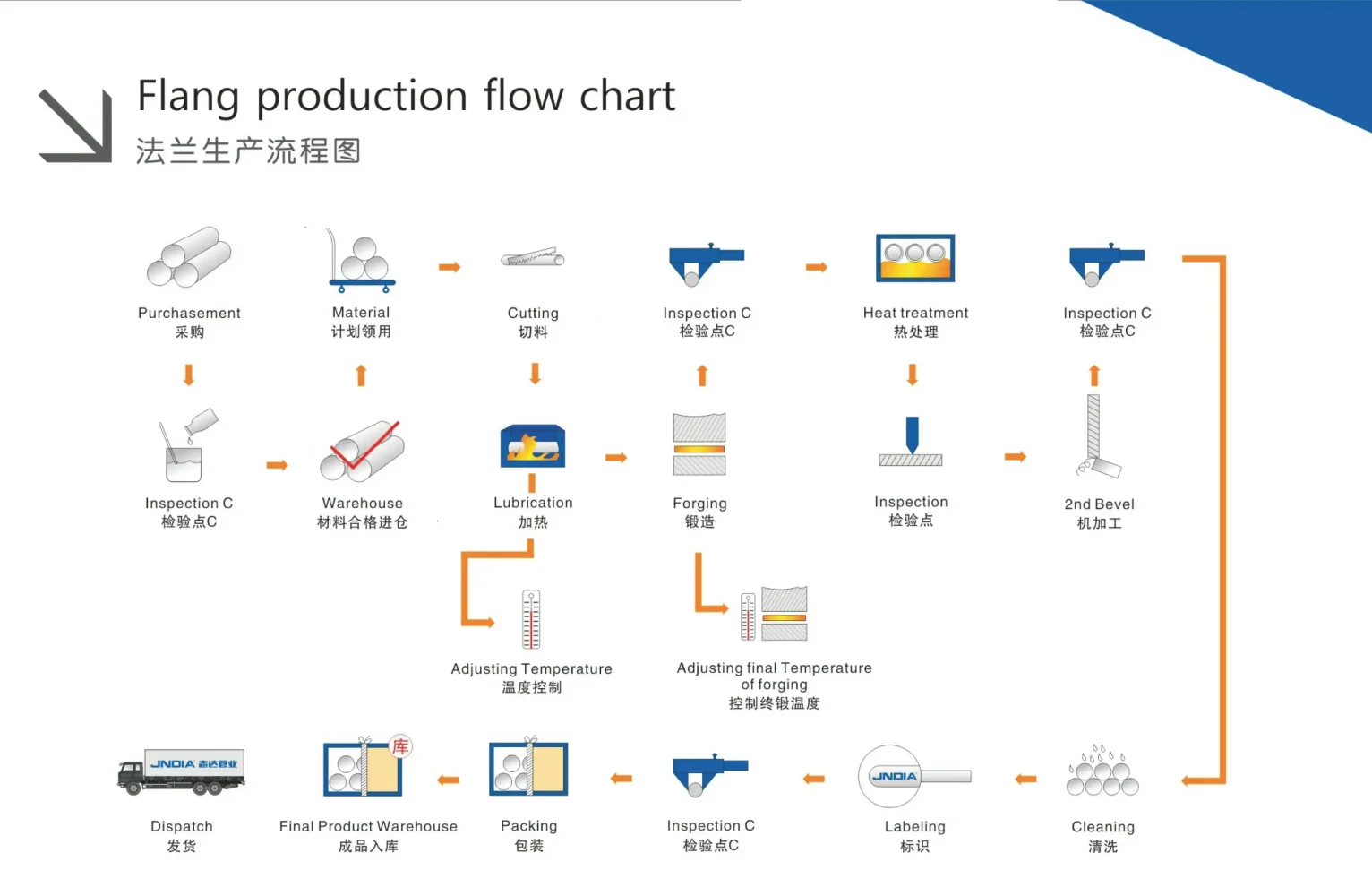

Manufacturing Processing
The manufacturing process of a stainless steel blind flange involves several steps to ensure the final product meets the required specifications and standards. Below is a detailed description of the process:
Specification of Stainless Steel Flange
| NPS | Pressure Rating | Material | Standard | Flange Face | |||
| DN15-DN3000 1/2"-120" | Class150- Class2500, PN10 - PN160 | Stainless steel | Duplex Steel | Alloy steel: | ASTM B16.5, ASTM B16.47, MSS SP44, EN1092-1, ASTM A182, JIS B2220, BS 4504, SABS/SANS1123, AWWA C207 | Ring Type Joint (RTJ), Flat Face (FF), Raised Face (RF) | |
| 31254, 904/L 347/H, 317/L 310S, 309 316Ti, 321/H 304/L, 304H 316/L, 316H | UNS S31803, S32205, S32750, S32760 | N04400, N08800 N08810, N08811 N08825, N08020 N08031, N06600 N06625, N08926 N08031, N10276 | |||||
| Other requirements as per customers' design and drawings. | |||||||

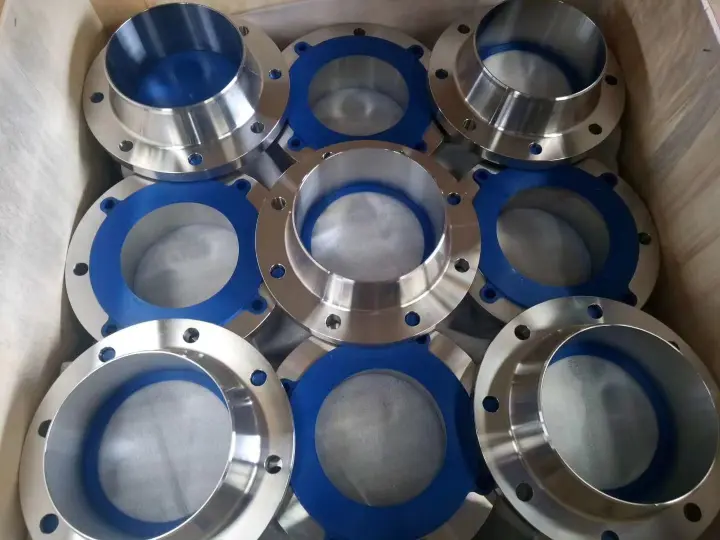

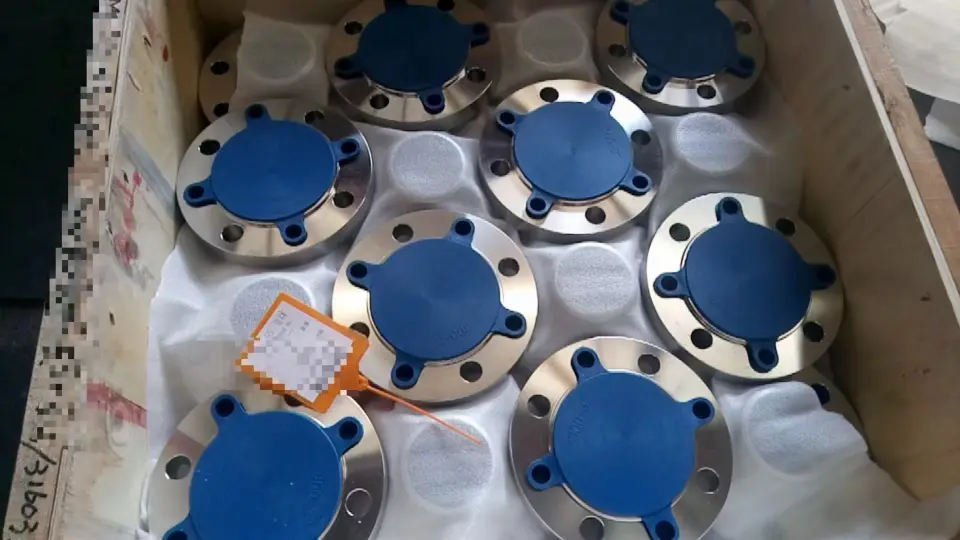

Type of packaging
– Wooden box for small diameter flanges

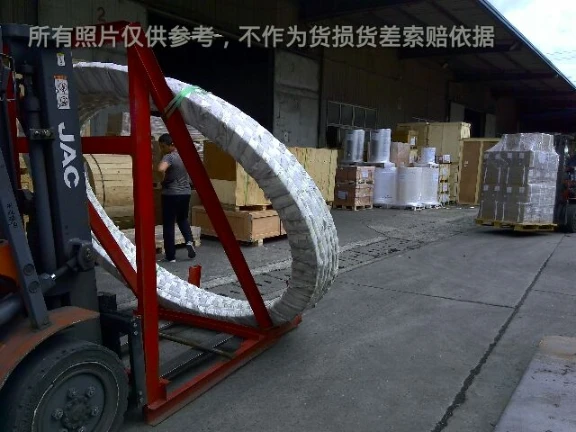

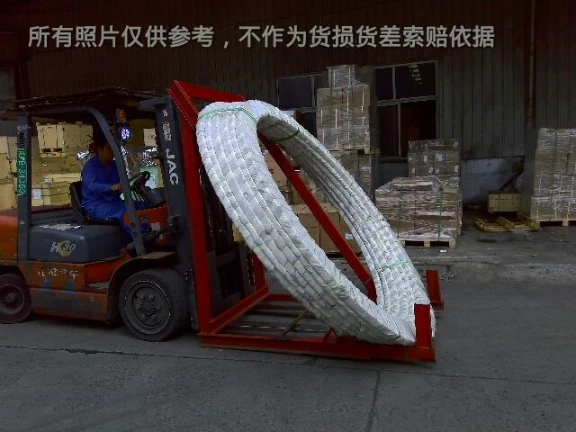

– Iron frame for large diameter flanges
